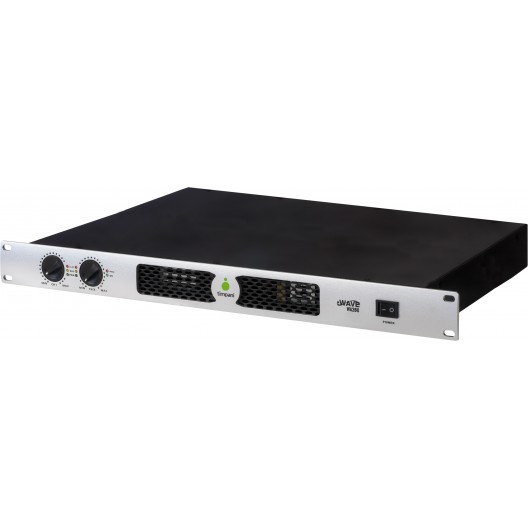

WA260

FINALE DI POTENZA WAVE WA220 CLASS D

Descripción
Detalles del producto

Descripción

Stereo 8Ohm: 650+650W Stereo 4Ohm: 975+975W Technology: Class D Frequency Response: 20Hz-20KHz Input Sensitivity: 0.775V/32dB/1.0V Maximum Input Level: 21dB/9V Input Impedance Active Balanced: 10KOhm Signal/noise Ratio: >90dB Crosstalk At Rated Output power: >70dB Damping Factor: >300 Slew Rate internal: 20V/µs Protection: Short circuit,Current limited DC fault AC line fuse.Thermal cut off,power up/down transients, Slow start,Circuit breaker for overcurrent/overload Indicators: Power(white),Protect(yellow),Clip(red),Bridge(green),Parallel(green) Cooling: Variable Speed Fan Front Panel Controls: Level Ach,Bch Power Switch Rear Panel Controls: Stereo/Bridge Mode Switch.0.77V/26dB/1.4V Input Sensitivity Switch.Ground /lift Switch Connector: Bal XLR Input .Bal 1/4?input,5 Way Blnding Post.Speakon Power Consumption Half Power: <360W Power Supply: AC 115V-230V 50-60Hz Dimensions (W x D x H) mm: 483x45x330mm Net Weight: 5.8kg

Detalles del producto

Marca Street Audio

Referencia STRWA260

AF005_Stereo output power 8 Ohm: : 650+650W (RMS)
AF010_Stereo output power 4 Ohm: : 975+975W (RMS)
AF030_Risposta in frequenza:: 20Hz-20KHz/-3dB
AF035_Amplificazione: : D
AF040_Protezione: : Soft start ,clip limiter ,power limiter ,thermal cut ,DC,AC,short circuit
AF050_Raffreddamento: : Upgraded cooling fan with magnetic suspension technology and low noise
AF055_Connessioni INPUT: : Combo (Jack, XLR)
AF060_Connessioni OUTPUT: : Speakon, XLR
AF065_Unità rack: : 1U
AF070_Dimensione Prodotto (mm): : 483x330x45
AF075_Peso (Kg): : 5,8
AF004_Tipo:: Power amplifier - Class D
AF049_Caratteristiche:: Advanced switch-mode power supply technology for high performance, 3 x optional sensitivity setting available: 26dBb / 32dB / 1.4V
AF026_Coefficiente di smorzamento:: ＞450
