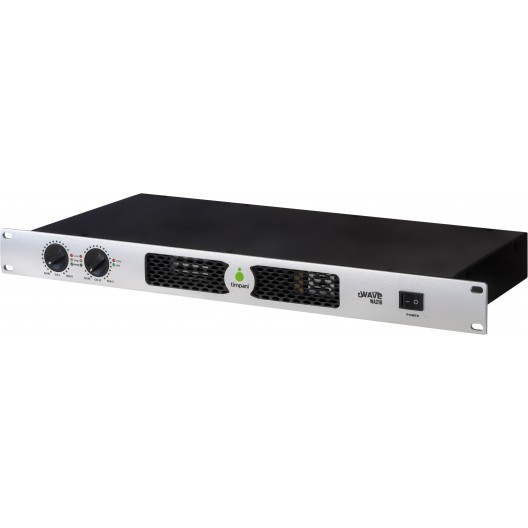

WA210

FINALE DI POTENZA WAVE WA210 CLASS D

Descripción
Detalles del producto

Descripción

Stereo 8Ohm: 100+100W Stereo 4Ohm: 190+190W Bridge 8Ohm : 380W Technology: Class D Frequency Response: 20Hz-20KHz Input Sensitivity: 0.775V/32dB/1.0V Maximum Input Level: 21dB/9V Input Impedance Active Balanced: 20KOhm Signal/noise Ratio: >90dB Crosstalk At Rated Output power: >70dB Damping Factor: >300 Slew Rate internal: 20V/µs Protection: Short circuit,Current limited DC fault AC line fuse.Thermal cut off,power up/down transients, Slow start,Circuit breaker for overcurrent/overload Indicators: Power(white),Protect(yellow),Clip(red),Bridge(green),Parallel(green) Cooling: Variable Speed Fan Front Panel Controls: Level Ach,Bch Power Switch Rear Panel Controls: Stereo/Bridge Mode Switch.0.77V/26dB/1.4V Input Sensitivity Switch.Ground /lift Switch Connector: Bal XLR Input .Bal 1/4?input,5 Way Blnding Post.Speakon Power Consumption Half Power: <120W Power Supply: AC 115V-230V 50-60Hz Dimensions (W x D x H)mm: 482x212x44mm Net Weight: 3.6kg

Detalles del producto

Marca Street Audio

Referencia STRWA210

AF005_Stereo output power 8 Ohm: : 100+100W (RMS)
AF010_Stereo output power 4 Ohm: : 190+190W (RMS)
AF020_Bridge output power 8 Ohm: : 380W
AF030_Risposta in frequenza:: 20Hz-20KHz
AF035_Amplificazione: : D
AF040_Protezione: : Soft start, clip limiter, power limiter, thermal cut, DC,AC,short circuit
AF050_Raffreddamento: : Upgraded cooling fan with magnetic suspension technology and low noise
AF055_Connessioni INPUT: : Combo (Jack, XLR)
AF060_Connessioni OUTPUT: : Speakon, XLR
AF065_Unità rack: : 1U
AF070_Dimensione Prodotto (mm): : 482x212x44
AF004_Tipo:: Power amplifier - Class D
AF049_Caratteristiche:: 30Hz low cut filter/input sensitivity switch, High efficent and reliable switching power supply with power factor correction (PFC) technology
AF026_Coefficiente di smorzamento:: ＞300
