Description

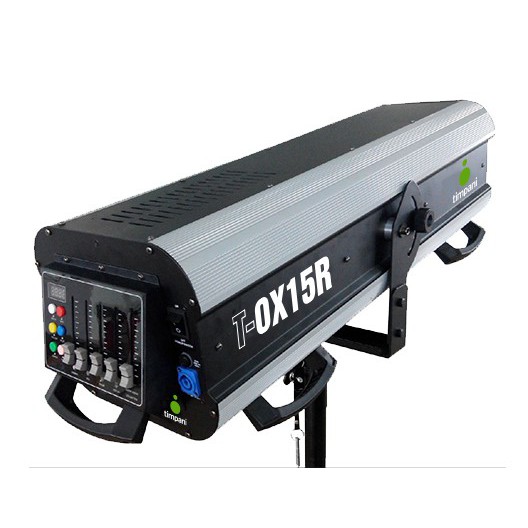

The compact size and the high performances of the followspot T-OX15R features a steadier beam and a efficient optical system, light weight, easy to transport.
Low power consumption: special lamp YODN 15R equivalent to a traditional 3.000W lamp but but with a consumption of only 450W.

Type: SPOT follow / Profile Spotlight
Lamp technology: Discharge lamp
Lamp: YODN MDS 15R
Ballast: Internal Electronic
Power: 330W
Max consumption: 420W
Color temperature: 3200-3800-4300-5600-6500°K + frost (CTO correction filter)
Control: control panel with buttons and faders
Luminous flux: 4.200 lm
Beam angle: 5°-10°
Uniformity: 98%
Colour wheel: 5 + white (+ CTO Filters)
Iris: yes
Focus: linear - manual adjustment
Dimmer: 0-100% linear adjustment
Strobe: adjustable speed (1-20 flashes/sec.)
Flicker-free: yes
Typical throw distance: 10-60 meters
Power IN: PowerCon
Anchorage: mounting bracket for installation on stand
IP rating: IP20
Lamp lifespan: 1500hours
Certification: CE
Input voltage: 110V-240V/50-60Hz
Dimensions (mm): 918x348x314 (Flight case size: 1022×580×490)
Weight (kg): 26 (+ Stand 6kg)
Included accessories: tripod and flight case

PAROLA CHIAVE:
nov-tox
Timpani
STRT-OX15R
LT006_Lamp technology:
Discharge lamp
LT005_Type:
Spot
LT015_Ballast:
Internal Electronic
LT035_Power:
230W
LT040_Max consumption:
420W
LT065_Color temperature:
3200-3800-4300-5600-6500°K + frost (CTO correction filter)
LT070_Control:
control panel with buttons and faders
LT085_Dimmer:
0-100% linear adjustment
LT090_Luminous flux:
4.200 lm
LT100_Strobe:
adjustable speed (1-20 flashes/sec.)
LT130_Beam angle:
5°-10°
LT135_Colour wheel:
5 + white (+ CTO Filters)
LT155_Focus:
linear - manual adjustment
LT215_Anchorage:
mounting bracket for installation on stand
LT225_IP rating:
IP20
LT230_Certification:
CE
LT235_Input voltage:
110V-240V/50-60Hz
LT245_Package size (mm):
918x348x314
LT250_Weight (kg):
26
LT260_Optional flightcase:
tripod and flight case
LT007_Lamp:
YODN MDS 15R
LT211_Power IN:
PowerCon
